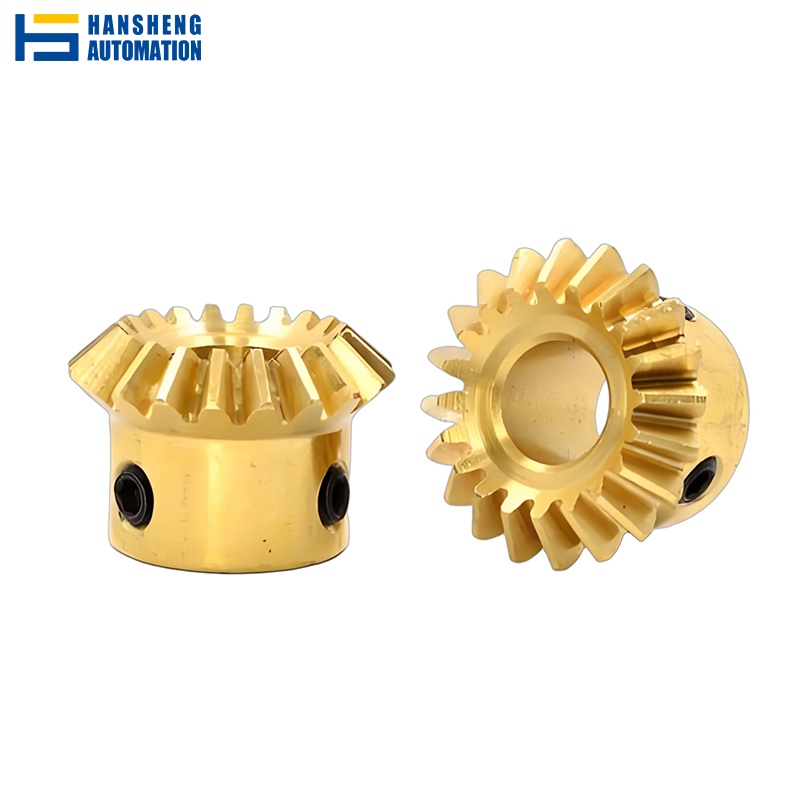

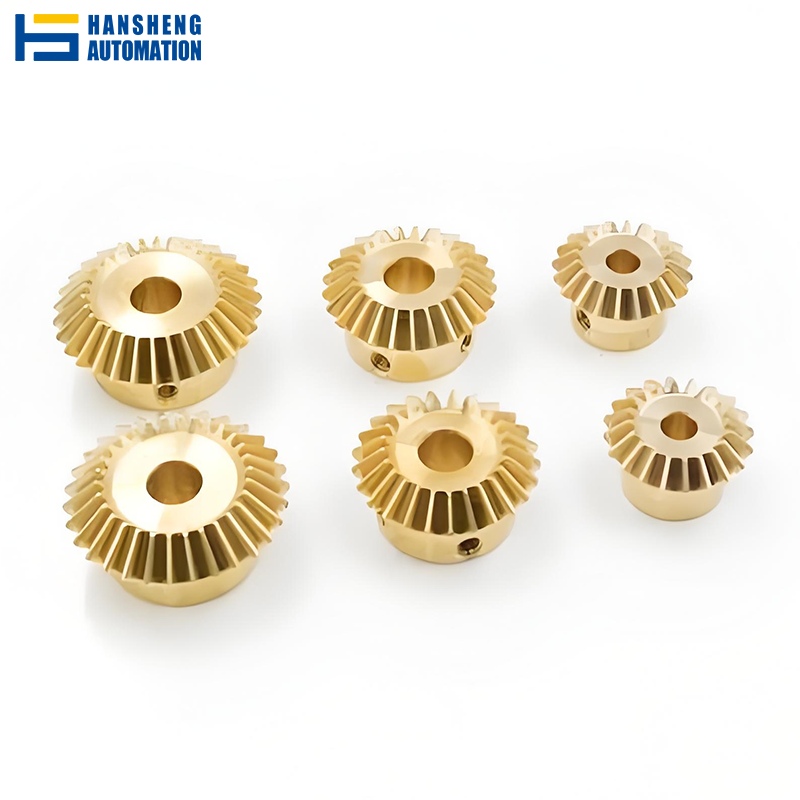

Brass Bevel Gear
Module: 0.1 – 3.0
Tip Diameter: 3 mm – 200 mm
Precision Grade: ISO/DIN Grade 5–9
Shaft Angle: 90° (Miter) / Custom angles available
Teeth Type: Straight bevel (Straight teeth)
Introduction
Hansheng Automation specializes in custom precision brass bevel gears, backed by over 10 years of gear manufacturing experience. Using advanced processes including Gear Hobbing, Gear Shaping, and Gear Skiving, we manufacture bevel gears to your exact drawings or specifications — from single prototypes to mass production. Achievable precision: ISO/DIN/GB Grade 5–9. Whether you need standard 90°miter gears or complex custom configurations, our engineering team is ready to deliver.
Manufacturing Capabilities – Brass Bevel Gear
Core Specifications
| Parameter | Range / Specification |
|---|---|
| Module | 0.1 – 3.0 |
| Tip Diameter | 3 mm – 200 mm |
| Precision Grade | ISO/DIN Grade 5–9 / GB Grade 5–9 |
| Shaft Angle | 90° (Miter) / Custom angles available |
| Teeth Type | Straight bevel (Straight teeth) |
| Bore & Keyway | Per customer drawing |
| Quantity | 5 pc (prototype) – Mass production |
Material
| Grade | Description |
|---|---|
| C360 Brass | Free-machining brass, excellent machinability, most common choice |
| H59 Brass | Higher zinc content, good strength, cost-effective for bulk orders |
| Other Brass Alloys | Available upon request |
How to Order – Custom Brass Bevel Gears
1 — Send Us Your Drawing or Requirements
Upload your 2D drawing (PDF / DXF) or 3D model (STEP / IGES), or simply describe your specifications — module, number of teeth, shaft angle, bore size, and required precision grade. Not sure about the details? Our engineers can help.
2 — Receive Your Quote Within 24 Hours
Once we review your requirements, we’ll respond with a detailed quotation within 24 hours — including unit price, lead time, and any technical recommendations.
3 — Prototype & Approval
Before mass production begins, we manufacture a sample for your review and approval. This ensures the gear meets your exact dimensional and functional requirements.
4 — Production & Delivery
Upon sample approval, we move into full production. Each batch undergoes quality inspection before shipment, with material certificates available upon request.
What You Can Send Us
- 2D Engineering Drawing (PDF, DXF, DWG)
- 3D Model (STEP, IGES, STP)
- Written specifications or parameters
- A physical sample for reverse engineering
- Just an idea — our engineers can assist with design
Why Manufacture with Hansheng Automation?
Precision You Can Rely On
With Gear Skiving, Gear Hobbing, Gear Shaping, and Gear Broaching capabilities — plus in-house gear grinding for finishing — we achieve precision grades from ISO/DIN/GB Grade 5 to Grade 9 to meet your exact application requirements.
Drawing-Based Custom Manufacturing
Every gear we produce is manufactured to your drawing or specification. Submit your 2D or 3D file and we handle the rest.
Engineering Support Available
Don’t have a finalized drawing? Our engineering team can assist with gear design based on your load, speed, space envelope, and application requirements.
Full Material Traceability
Material certificates are available for every order, ensuring compliance with your quality management and supply chain documentation requirements.
Industries We Serve
| Industry | Typical Application |
|---|---|
| Industrial Automation | Actuators, conveyors, positioning systems |
| Marine & Offshore | Valve actuators, deck hardware |
| Medical Devices | Imaging equipment, lab instruments |
| Precision Instruments | Optical, surveying, measurement tools |
| Robotics | Joints, pan-tilt mechanisms |
| Consumer Electronics | Tuning mechanisms, rotary controls |
| Clocks & Timers | Gear trains, timing mechanisms |
Not sure if brass is the right material for your application?
Our engineers are happy to review your requirements and recommend the most suitable gear material and specification.
FAQ
Need the following:
Module and number of teeth
Shaft angle (e.g. 90°)
Bore diameter and keyway dimensions (if applicable)
Required precision grade
Material preference (C360 / H59 or other brass alloy)
Quantity
We respond to all inquiries within 24 hours on business days. For complex custom configurations, we may follow up with clarifying questions before issuing the final quotation.
5 piece. Prototype and sample orders are a standard part of our process.
Brass offers better corrosion resistance, lower noise, and superior machinability compared to steel. Steel bevel gears are better suited for heavy load, high torque, or high-temperature applications.
Yes. Please specify gear ratio requirements when submitting your inquiry.
Yes. Material certificates are available for all orders upon request. We can also provide dimensional inspection reports and other quality documentation to support your incoming inspection process.
Yes. We ship to customers worldwide. Shipping method, Incoterms, and lead time for delivery will be confirmed at the time of quotation based on your location and order size.
